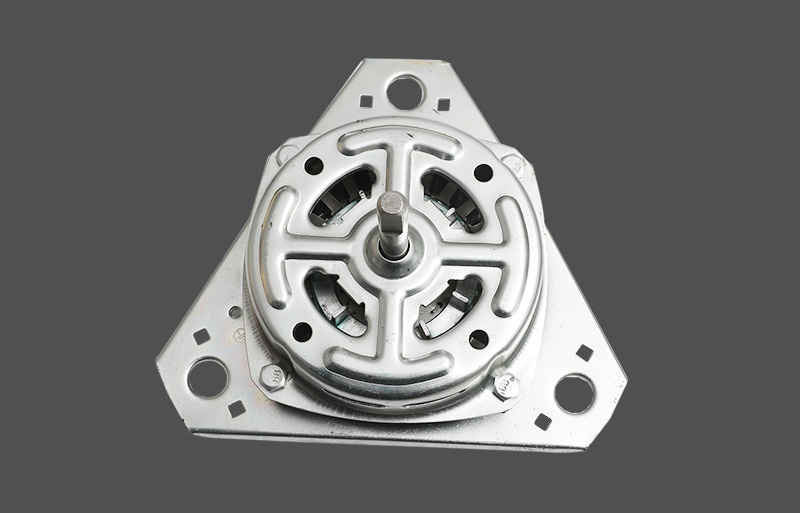

MOTOR FOR WASHING MACHINE SERIES/TY-014.JPG,
MOTOR FOR WASHING MACHINE SERIES/TY-014-1.JPG,
MOTOR FOR WASHING MACHINE SERIES/TY-014-2.JPG
| 项目名 | 洗衣机电机 | |||||||||
| XD-80 | XD-100 | XD-120 | XD-135 | XD-150 | XD-160 | XD-180 | XD-200 | |||
| 1 | 额定功率 | PN | 80W | 100W | 120W | 135W | 150W | 160W | 180W | 200W |
| 2 | 额定电压 | U | 220/240V | 220/240V | 220/240V | 220/240V | 220/240V | 220/240V | 220/240V | 220/240V |
| 3 | 极数 | p | 4P | |||||||
| 4 | 额定频率 | f | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| 5 | 电容 | C | 7μF | 8μF | 10μF | 11μF | 12μF | 12μF | 13μF | 14μF |
| 6 | 额定电流 | I | 0.8/0.85A | 0.9/1.8A | 1.15/1.2A | 1.3/1.35A | 1.4/1.5A | 1.5/1.6A | 1.6/1.7A | 1.7/1.8A |
| 7.1 | 额定转速 | nN | ＞1340r/min(＞1600r/min) | |||||||
| 7.2 | 效率 | η | 46% | 47% | 48% | 49% | 50% | 52% | 54% | 56% |
| 7.3 | 最大转矩 | Tmax | 1.02N.m | 1.3N.m | 1.52N.m | 1.6N.m | 1.7N.m | 1.82N.m | 2.05N.m | 2.26N.m |
| 7.4 | 锁定转矩 | Tst | 0.68N.n | 0.75N.n | 0.806N.n | 0.88N.n | 0.95N.n | 1.1N.n | 1.3N.n | 1.4N.n |
| 7.5 | 锁定电流 | Ist | ＜2.5A | ＜2.8A | ＜3.0A | |||||
| 8 | 绝缘等级 | B | ||||||||
